HPU

Hydraulic Power Unit (HPU) for Metal Bending Machine

Image Description
Image Description
Image Description

Metal Works Fabrication

Initial Client Problem

Our client was an enterprise in the metal works and fabrication industry. We received an inquiry from them to build a Hydraulic Power Unit (HPU) to drive their metal bending machine. The target was to bend the CS ST400 plate with a thickness of 16 mm and a length of 1600 mm. Our client had limited background knowledge on the bending machine and its dies; therefore, there was only a small amount of data they could provide for us as a reference.

Our Solution

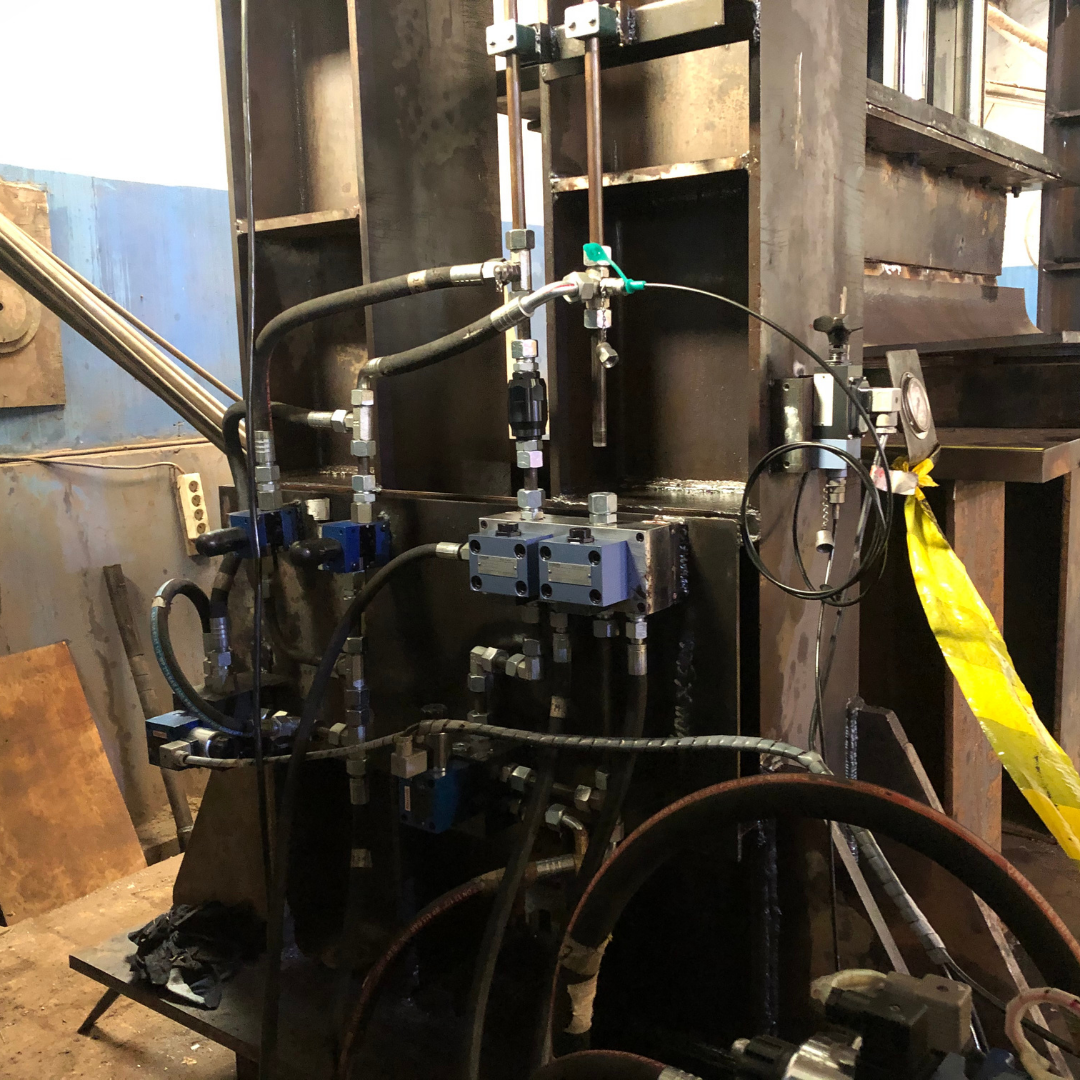

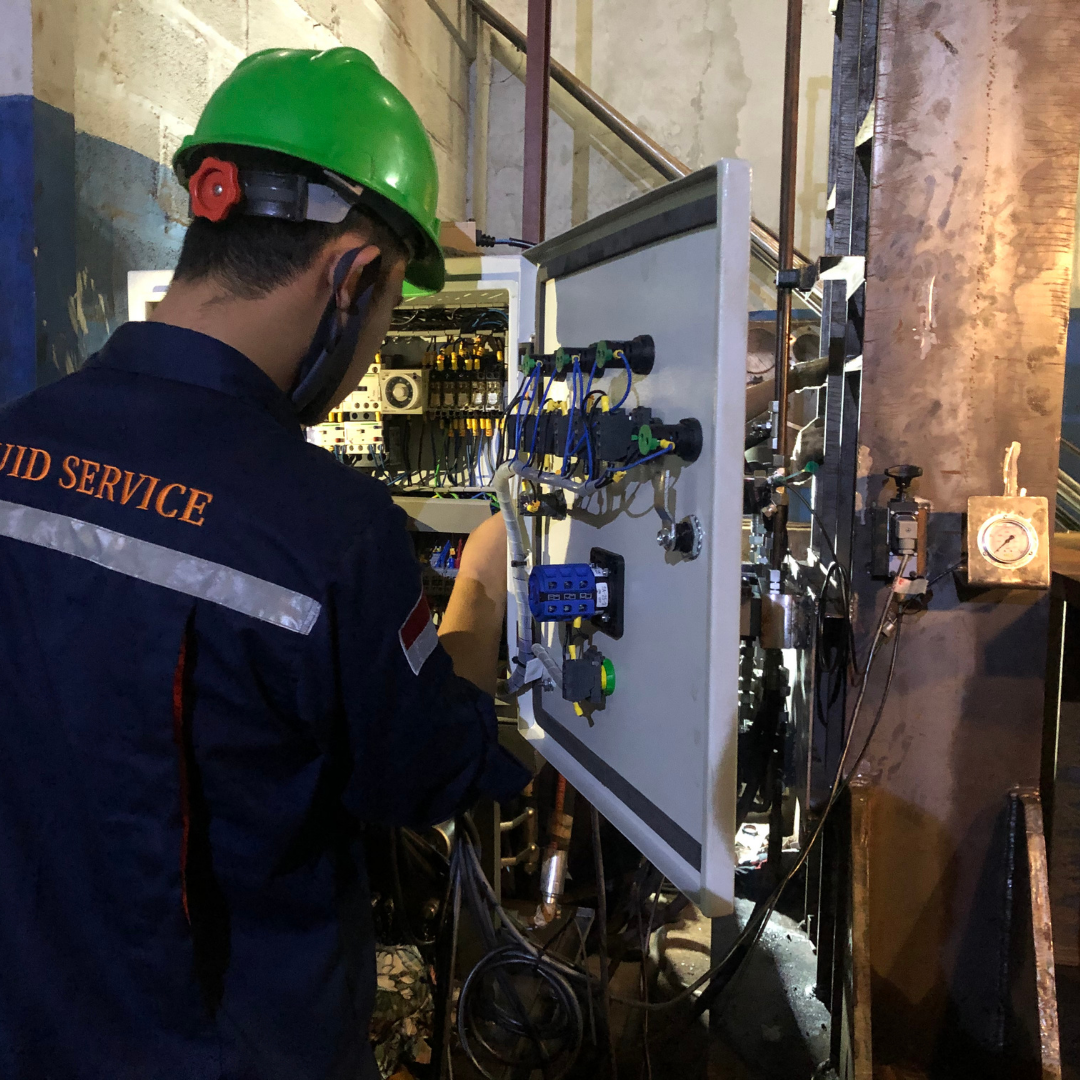

We gave a solution by collaborating with our client to build a powerful and handy bending machine. With a systematic approach and precise engineering calculation based on dies theory, we advised them in designing dies to perform optimally with our HPU in bending thick metal plate. Then, we built a powerful Hydraulic Power Unit (HPU), driven by a 7.5 kW motor. This HPU had a maximum tonnage of 200 tons at a pressure of 250 bar and was equipped with an electric control panel that accommodated dual-speed features on its cylinder. Safety was one of our concerns in making heavy equipment with high pressure. So, we also built this HPU in a solid design with a compact valve stand from Rexroth for safety reasons.
